| Home > Products > Laminating machine |
 |
 Auxiliary machine |
 |
 |
|

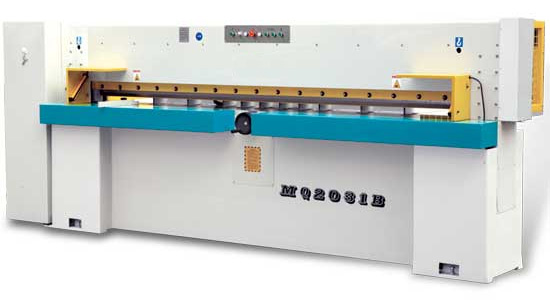

| Veneer Guillotine |
Model No. |
MTMQ2026 |
MTMQ2031 |
MTMQ2036 |
| Max. cutting length |
2600mm |
3100mm |
3600MM |
| Max. cutting thickness |
50mm |
50mm |
50mm |
| Max. hydraulic pressure |
14Mpa |
14Mpa |
14Mpa |
| Hydraulic pump power |
3.7kw |
3.7kw |
3.7kw |
| Feeding motor power |
0.18kw |
0.18kw |
0.18kw |
| Scissors size |
2690x90x10mm |
3190x90x10mm |
3690X90X10mm |
| Overall dimension |
3680x1600x1540mm |
4180x1600x1540mm |
4680x1600x1540mm |
| N.W |
2500kgs |
2800kgs |
3100kgs |
|
|
|
