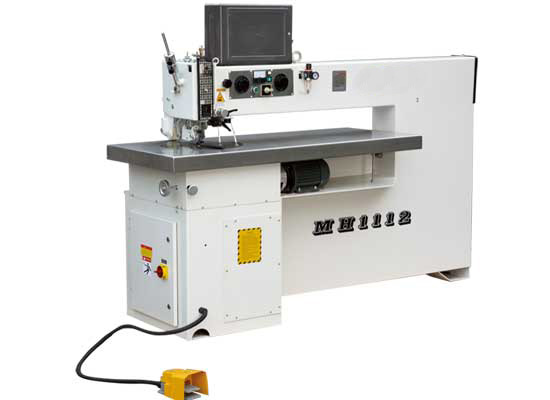

Veneer Splicer
Model No.
Throat depth 920mm 1200mm
Thickness of veneer 0.4-2mm 0.4-3mm
Feeding speed 15m/ min 35-60m/ min
Feeding motor power 0.18kw 0.75kw
Heating pipe power 0.32kw 0.4kw
Working air pressure 0.2Mpa 0.4-0.65Mpa
Overall dimension 1290x480x1500mm 2140x720x1650mm
N.W 200kgs 520kgs
Veneer Splicer w/o gluing line

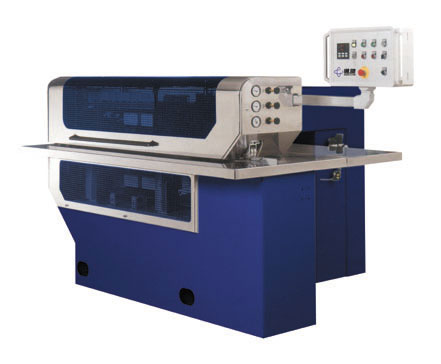

MTTC-1250aperture-free machine:adopt specially designed machinery configuration of press and wamth,ake use of hot solid glue as the joint medium to make the solid veneeer combine tightly wothout aperture,the advantages of this equipment are as follows:
1、adopt advanced digital control.
2、electric automatically feeds stuff.
3、adopt excellent steel-chain conveyance.
4、there is no antomatic coater machinery.

veneer strip length >300mm
veneer strip thickness 0.25—3.0mm
veneer strip width 45--1200mm
veneer moisture 8—12%
throughtput speed 10—50m/min

heating zone length


heating temperature


turning energy 3kw
heating energy 6kw
compressed air 0.1—0.4kpa/cm
