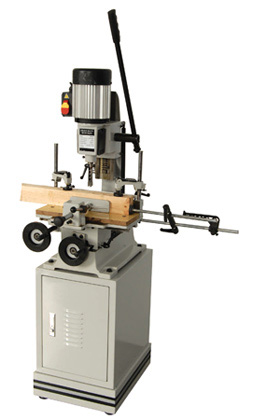

Model No.:   MTMS3840

ChiselCapacity:6-26mm(1/4″-1″)
Max.Mortising Depth:76mm
Max.Chisel Travel:210mm
Drill Chuck Capacity:3-16mm
Travel in Front and Behind:145mm
Travel in Left and Right:320mm
Spindle to Fence(max.):140mm
Chisel to Table(max.):210mm
Table size: 400×150mm
Over Height:1720mm
Motor：750w
Spindle Speed：1400(50Hz)/1720(60Hz)rpm　
Packing   Size:  Machine：560×460×820mm
Stand：500×400×630mm　　　　
G.W./N.W.:　　　　
Machine：113/108kgs
Stand：8/16kgs
Units/20′Container：83pcs

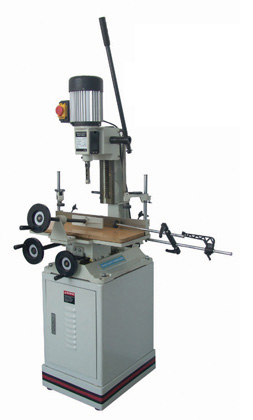

Model No.:   MTMS3840A

ChiselCapacity:6-26mm(1/4″-1″)
Max.Mortising Depth:76mm
Max.Chisel Travel:210mm
Drill Chuck Capacity:3-16mm
Travel in Front and Behind:145mm
Travel in Left and Right:170mm
Spindle to Fence(max.):140mm
Chisel to Table(max.):210mm
Table size: 540×190mm
Over Height:1700mm
Motor：750w
Spindle Speed：1400(50Hz)/1720(60Hz)rpm　
Packing   Size:  Machine：570×480×830mm
Stand：500×400×630mm　　　　
G.W./N.W.:　　　　
Machine：128/120kgs
Stand：20/18kgs
Units/20′Container：78pcs

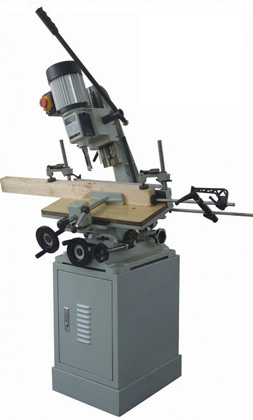

Model No.:   MTMS3840T

ChiselCapacity:6-26mm(1/4″-1″)
Max.Mortising Depth:76mm
Max.Chisel Travel:210mm
Drill Chuck Capacity:3-16mm
Max. clamping width:160mm
Spindle to Fence(max.):140mm
Travel in Front and Behind:145mm
Travel in Left and Right:280mm
Table size:540x230mm
Base size: 460x360
Column tilt:±20°
Table tilt:±20°  Fence tilt:0°
Chisel to Table(max.):210mm
Over Height:1800mm
Motor：750w
Spindle Speed：1400(50Hz)/1720(60Hz)rpm
Packing   Size:  Machine：620×560×970mm
Stand：500×400×630mm　　　　
G.W./N.W.:　　　　
Machine：140/110kgs
Stand：18/16kgs
Units/20′Container：60pcs
