 Planer |
 |
 |

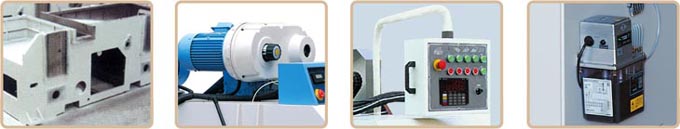

| The main parts such ad machine frame and worktable etc are made from aged cast iron and precisely machined, has the features of high accuracy and good vibration absorbition. |
Special speed adjustment device combining with power torque worm reducer, enables to select a feed speed according to actual need |
Equipped with imported digital display device for series H, operation is convenient. And the working accuracy is up to 0.01mm ,enables to vision the speed of Feed. |
Imported overseas oil pump lubricates each lubrication point regularly ang quantificationally. And the machine will automatically stop case of lackage of oil |
|
 |

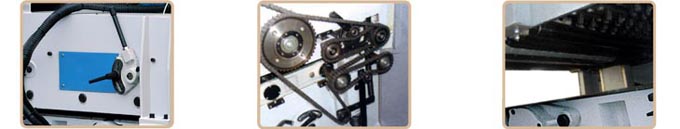

| The feeding unit can be adjusted upwards and downwards, the elevating range reaches 10mm ,and thus the processing precision can be enhanced with powerful feeding |
Provided with driven feed roller structure , ensuring a stronger and smoother feeding .Equipped with overloading protection mechanism. |
Equipped with pressure plate guarantees short workqiece smooth machining, increasing production output |
|
|
| |

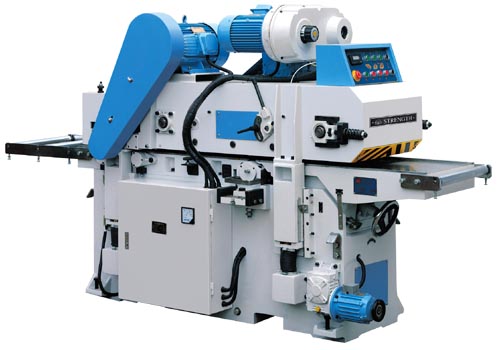

| Double side planer series |
| |
|
| Model No. |
MTMB204F |
MTMB204H |
MTMB206F |
MTMB206H |
| Working width |
430mm |
430mm |
630mm |
630mm |
| Working thickness |
120mm |
120mm |
150mm |
150mm |
| Min working length |
260mm |
260mm |
260mm |
260mm |
| max cutting depth (upper spindle) |
10mm |
10mm |
7mm |
7mm |
| Max cutting depth (bottom spindle) |
8mm |
8mm |
5mm |
5mm |
| Tool cutting circle diameter |
Φ101mm |
Φ101mm |
Φ101mm |
Φ101mm |
| Spindle speed |
5000r/min |
5000r/min |
4800r/min |
4800r/min |
| Feed speed |
4-16m/min |
6-26m/min |
4-16m/min |
6-26m/min |
| upper & bottom spindle motor |
7.5/5.5kw |
11/7.5kw |
11/7.5kw |
15/11kw |
| feed motor |
2.2kw |
3kw |
3kw |
4kw |
| machine weight |
1860kg |
2060kg |
2500kg |
2800kg |
|
Main characteristics in product
• With good shock-absorbed quality ,stable iron casting lathe and numeral-controlled processing center that can process all materials once, it is good for knife spindle and feeding.
• The main spindle is processed specially and the other imported spindles with high precision can well support the whole machine.
• With elastic pedrail scratcher (optional in functions) ; the pressed distance of the elastic scratchers can be chose according to the thickness and curvature of the wood so as to increase the processing precision and strengthen the feeding.
• The knife spinele, pressing roller and stable feeder on the lathe with manual and automatic adjustable structure make sure the orientation more speedily and exactly .
• Imported electrical components keep the whole machine works fast and safely. H-shaped series of products are equipped with imported numerical display unit, the processing thickness can be controlled directly on operation panel, the precision can be up to 0.01mm and the feed speed can be adjusted.
• The worktable is processed specially to become more wearable. |
|
|
