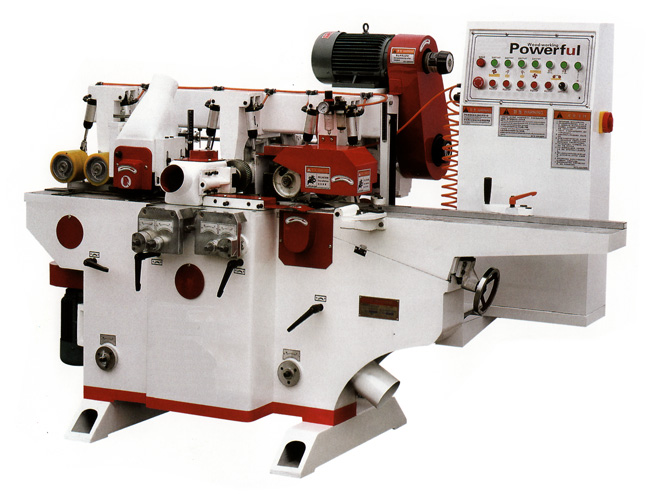

Four side planer series, 4 axes


Model No. MTMB4012F MTMB4016D MTMB4023D
Processing width 20-120mm 20-160mm 20-230mm
Processing thickness 8-100mm 8-100mm 5-125mm
Feeding speed 5-20mm 5-20mm 5-20mm
Feeding power 1.5kw 2.2kw 2.2kw
Knife speed 6000rpm 6000rpm 6000rpm
Bottom shaft power 2.2kw 3kw 4kw
Left shaft power 3kw 3kw 5.5kw
Upper shaft power 4kw 5.5kw 7.5kw
Right shaft power 2.2kw 3kw 4kw
Cross beam lifting and lowering power 0.37kw 0.75kw 0.75kw
Total power 13.27kw 17.45kw 23.95kw
Max. turning circle φ115mm φ145mm
Total weight 1300kgs 2000kgs 2700kgs

Main characteristics

We can produce specific planer with different Qty cutting axes, 4 sides with planing width 300mm and planing thickness 200mm.
