 Planer |
 |

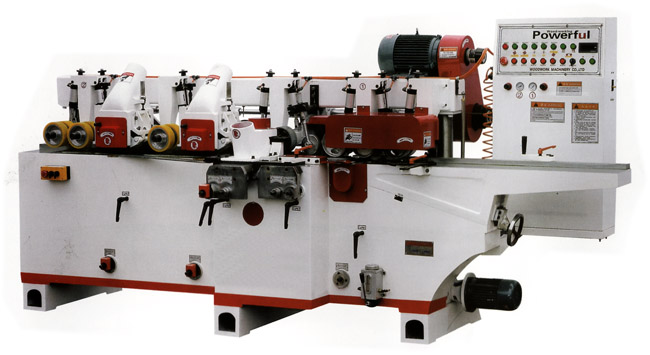

| Four side planer series, 5 axes |
| |
| Model No. |
MTMB5012H |
MTMB5016H |
MTMB5023H |
| Processing width |
20-120mm |
20-160mm |
20-230mm |
| Processing thickness |
8-100mm |
8-100mm |
5-125mm |
| Feeding speed |
5-20mm |
5-20mm |
5-20mm |
| Feeding power |
2.2kw |
2.2kw |
2.2kw |
| Dia. of cutter arbor |
40mm |
40mm |
|
| Knife speed |
6000rpm |
6000rpm |
6000rpm |
| Bottom shaft travel |
20mm |
20mm |
|
| Bottom shaft power |
2.2kw |
3kw |
4kw |
| Left shaft power |
2.2kw |
3kw |
5.5kw |
| Right shaft power |
2.2kw |
3kw |
4kw |
| Max. turning circle |
φ115mm |
|
|
| Upper shaft #1 power |
4kw |
5.5kw |
7.5kw |
| Upper shaft #2 power |
3kw |
4kw |
5.5KW |
| Max. turning circle |
φ135mm |
φ145mm |
|
| Cross beam lifting and lowering power |
0.75kw |
0.75kw |
0.75kw |
| Total power |
16.55kw |
21.45kw |
29.45kw |
| Total weight |
2000kgs |
2300kgs |
2700kgs |
|
Main characteristics
•We can produce specific planer with different Qty cutting axes, 4 sides with planing width 300mm and planing thickness 200mm.
|
|
|
