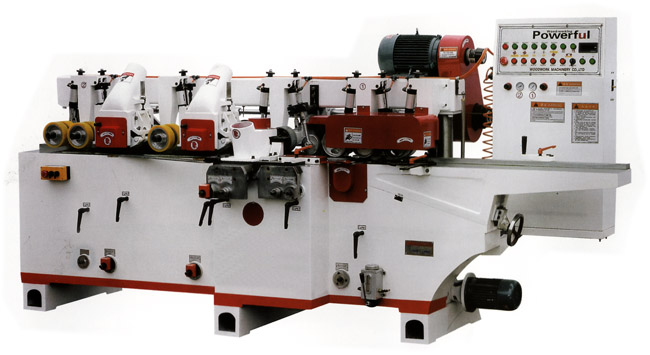

Four side planer series, 6 axes
Model No. MTMB6023H
Processing width 20-230mm
Processing thickness 5-200mm
Feeding speed 5-20mm
Feeding power 4kw
Knife speed 6000rpm
Bottom shaft #1 power 4kw
Bottom shaft #2 power 5.5kw
Left shaft power 5.5kw
Right shaft power 4kw
Upper shaft #1 power 7.5kw
Upper shaft #2 power 5.5KW
Cross beam lifting and lowering power 0.75kw
Total power 36.85kw
Total weight 3000kgs

Main characteristics

We can produce specific planer with different Qty cutting axes, 4 sides with planing width 300mm and planing thickness 200mm.
