Standard
Infinitely adjustable feed speeds from 9-36 m/min
Individual motor to each spindle to ensure maximum power transmission
all main spindle adjustments are carried out from outside the enclosure
Hard chromed electro plated treatment has been adopted for the durability of the work table surface.
Short piece driven top feed roller unit for greater feeding control around the right side spindle
Bottom driven bed rollers for increased feeding performance
l Pneumatic pressure loading to top feed rollers separately adjustable for easy of feeding stock with variation in thickness
Manual bed lubrication to reduce friction and improve feeding difficult timbers
Sealed safety enclose to reduce noise levels, improve extraction and operator safety
Options
1、Increased motor powers
2、Arrange machine to accommodate feeding of short pieces of Min .180mm
3、Table inserts to vertical spindle for additional support when feeding short components
4、four-side moulder series M16

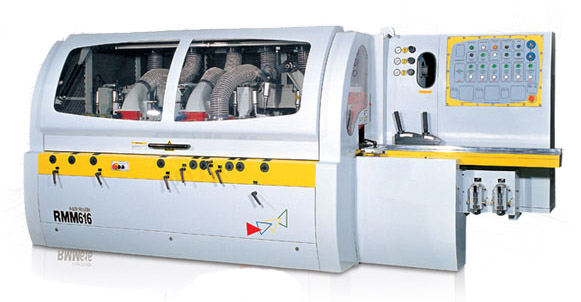

Model No. |
MTRMM416 |
MTRMM516 |
MTRMM616 |
Working Width(mm) |
Min. |
20 |
Max.
（max. cuter OD of 130mm） |
165 |
Working thickness(mm) |
Min. |
10 |
Max.
（max. cuter OD of 125mm） |
100 |
Number of spindles |
4 |
5 |
6 |
Spindle Speed(r/min) |
6000 |
Cutting circles(max~min)(mm) |
First bottom Spindle |
Ø110 ~ Ø125 |
Right side Spindle |
Ø110 ~ Ø160 |
Left side Spindle |
Ø110 ~ Ø160 |
First top Spindl |
Ø110 ~ Ø160 |
Second top Spindle |
~~~~~~~~ |
~~~~~~~~ |
Ø110 ~ Ø160 |
Second bottom spindle |
~~~~~~~~ |
Ø110 ~ Ø160 |
Ø110 ~ Ø160 |
Spindle diameter(mm) |
Ø40 |
Motor powers (Standard)
(kW) |
First bottom Spindle |
4kW/5.5HP |
4kW/5.5HP |
4kW/5.5HP |
Right side Spindle |
4kW/5.5HP |
4kW/5.5HP |
4kW/5.5HP |
Left side Spindle |
4kW/5.5HP |
4kW/5.5HP |
4kW/5.5HP |
First top Spindle |
5.5kW/7.5HP |
5.5kW/7.5HP |
5.5kW/7.5HP |
Second top Spindle |
~~~~~~~~ |
~~~~~~~~ |
4kW/5.5HP |
Second bottom spindle |
~~~~~~~~ |
4kW/5.5HP |
4kW/5.5HP |
Feed |
3kW/4HP |
4kW/5.5HP |
Feed beam rise & fall |
0.75kW/1.1HP |
1.1kW/1.5HP |
(Total motor powerkW) |
21.25kW/29.1 HP |
25.6kW/35HP |
30.6kW/42HP |
Feed speed (mm) |
9~36(Stepless variable feed ) |
Feeding roller diameter OD/ID (mm) |
Ø120/ Ø30 |
Feeding roller widthmm) |
2×50+1×16 |
Feeding roller width oppsite left spindl (mm) |
1×20+1×16 |
Outfeed roller diameter OD/ID (rubber) (mm) |
Ø120/ Ø30 |
Outfeed roller width(mm) |
2×50 |
Max. air pressure on the infeed rollers (Par. ) |
6 |
Infeed table and fence adjustment(mm) |
8 |
Axial adjustment to vertical spindle(mm) |
30 |
Axial adjustment to horizontal spindle ( except first bottom spindle )(mm) |
|
Infeed table length(mm) |
1450 |
1850 |
Dust outlet diameter(mm) |
bottom spindle |
Ø130 |
left and right spindle |
Ø130 |
top spindle and second bottom spindle |
Ø130 |
Overall machine dimensions (L×W×H) (mm) |
2819×1560×1730 |
3550×1560×1730 |
3726×1560×1730 |
Weight (tons approx) |
2.8 |
3.3 |
3.8 |
Note: Any variation to the specification above mentioned will not be further notified since the product specification and designs keeps on changing all the time
Options
5、Increased motor powers
6、Arrange machine to accommodate feeding of short pieces of Min .180mm |
