Standard:
lInfinitely adjustable feed speeds from 6-24 m/min
Individual motor to each spindle to ensure maximum power transmission
All main spindle adjustments are carried out from outside the enclosure
lHard chromed electro plated treatment has been adopted for the durability of the work table surface.
lDiameter of feeding roller is 140mm
lShort piece driven top feed roller unit for greater feeding control around the right side spindle
lBottom driving bed rollers for increased feeding performance
** * Pneumatic pressure loading to top feed rollers separately adjustable for easy of feeding stock with variation in thickness
Manual bed lubrication to reduce friction and improve feeding of difficult timbers
Adopting electric component from international class with steady quality
Sealed safety enclose to reduce noise levels, improve extraction and operator safety

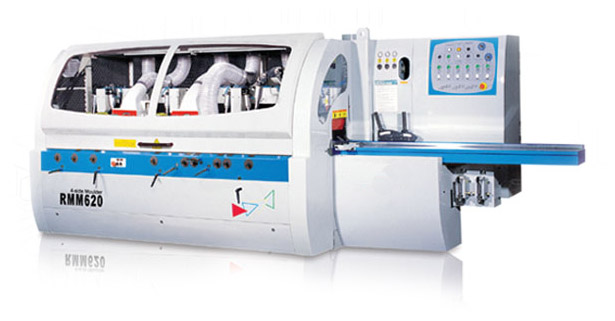

M20 series
1.Infinitely adjustable feed speeds from 6-24 m/min
2.Driving table rollers:Reduces friction throughout the machine, ensuring improved feeding.
3. Short feeding device:Shortens the distance between feed rollers around the right side spindle. Ensures positive control of work pieces.
4. Table insert:Removable table insert is to the vertical spindles to give support of the work piece especially when planing with reduced cutting circles.
5.Feed rollers are driven through gearboxes with power transmission by shaft to give smooth feed of components.
6.Back-off chip breaker assembly :Enables correct pressure settings to be maintained whilst accommodating stock variation, eliminating fear of the shoe hitting the cutter block
Model No. |
MTRMM620 |
MTRMM520 |
MTRMM420 |
Working Width (mm) |
Min. |
18 |
Max.
（max. cutting circle of 130mm） |
200 |
Working Thickness(mm) |
Min. |
8 |
Max. max. cutting circle of 160mm 160mm） |
120 |
Number of spindles |
6 |
5 |
4 |
Spindle Speed(r/min) |
6000 |
Cutting circles(max~min) |
First Bottom Spindle |
Ø110 ~ Ø145 |
Right side Spindle |
Ø110 ~ Ø180 |
Left side Spindle |
Ø110 ~ Ø180 |
First Top Spindle |
Ø110 ~ Ø180 |
Second Top Spindle |
Ø110 ~ Ø180 |
~~~~~ |
~~~~~ |
First Bottom Spindle |
Ø110 ~ Ø180 |
Ø110 ~ Ø180 |
~~~~~ |
Spindle diameter(mm) |
Ø40 |
Motor powers (Standard)
(kW) |
First Bottom Spindle |
5.5 kW/7.5HP |
5.5 kW/7.5HP |
5.5 kW/7.5HP |
Right side Spindle |
4 kW/5.5HP |
4 kW/5.5HP |
4 kW/5.5HP |
Left side Spindle |
4 kW/5.5HP |
4 kW/5.5HP |
4 kW/5.5HP |
First Top Spindle |
5.5kW/7.5HP |
5.5kW/7.5HP |
5.5kW/7.5HP |
Second Top Spindle |
5.5 kW/7.5HP |
~~~~~ |
~~~~~ |
First Bottom Spindle |
5.5kW/7.5HP |
5.5kW/7.5HP |
~~~~~ |
Feed |
4kW/5.5HP |
3kW/4HP |
3kW/4HP |
Feed beam rise & fall |
1.1kW/1.5HP |
1.1kW/1.5HP |
1.1kW/1.5HP |
Total motor power(kW) |
35.1kW/48HP |
28.6kW/39HP |
23.1kW/31.5HP |
Feed speed (mm) |
6 ~24(Stepless variable feed ) |
Feeding roller diameter OD/ID(mm) |
Ø140/ Ø35 |
Feeding roller width(mm) |
2×50 |
Feeding roller width oppsite left spindle (mm) |
2×20+1×16 |
Outfeed roller diameterOD/ID (rubber) |
Ø140/ Ø35 |
Outfeed roller width(mm) |
2×50 |
Infeed driven bed rollers diameter(mm) |
Ø96 |
Infeed driven bed rollers width (mm) |
1×30+1×50 |
Driven bed roller diameter between two top spindles (mm) |
Ø96 |
Driven bed roller width between two top spindles (mm) |
192 |
Outfeed bed roller diameter (mm) |
Ø96 |
Outfeed bed roller width(mm) |
192 |
Max. air pressure on the infeed rollers (Par. ) |
6 |
Infeed table and fence adjustment(mm) |
10 |
Axial adjustment to vertical spindle(mm) |
30 |
Axial adjustment to horizontal spindle ( except first bottom spindle )(mm) |
20 |
Infeed table length(mm) |
2144 |
2144 |
1624 |
Dust outlet diameter(mm) |
Ø130 |
Overall machine dimensions (L×W×H) (mm) |
4330×1635×1730 |
3850×1635×1730 |
3650×1635×1730 |
Weight (tons approx) |
4.1 |
3.5 |
3 |
Note: Any variation to the specification above mentioned will not be further notified since the product specification and designs keeps on changing all the time.
Options
1、CE norm
2、Increased motor powers
3、Vertical spindle speeds increased to 7500 r/min
4、Pneumatic pressure to infeed driven bed roller |
