Planer

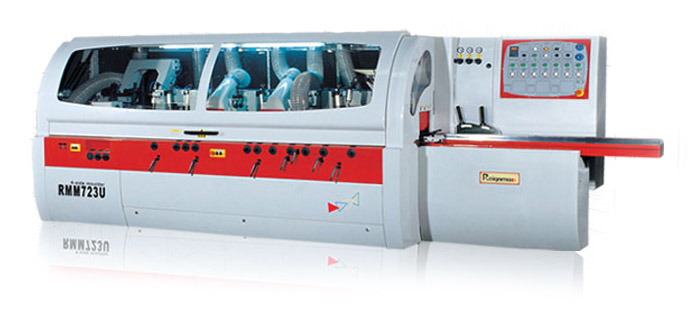

Four side planer series

Standard:
*Inverter feed speed of 6~30m/min
* Individual motor to each spindle to ensure maximum power transmission
* High precision spindle units with two pairs of high precision bearings each end of the assembly
All main spindle adjustments are carried out from outside the enclosure
Hard chromed bed plates to minimise bed wear
Short piece driven top feed roller unit for greater feeding control around the right side spindle
A group of side pressure wheels on the right side of the left spindle, adjusted the pressure flexible by pneumatic.
As our standard, short pieces device with pneumatic double-direction( press and raise) , you can make the workpieces feeding or back in anytime.
Bottom driven bed rollers for increased feeding performance
Pneumatic pressure loading to top feed rollers separately adjustable, for easy of feeding stock with variation in thickness
Pneumatic double action rise & fall to top feed roller before first bottom spindle
Pneumatic laoding to side roller pressure before left vertical spindle
Manual bed lubrication to reduce friction and improve feeding difficult timbers
Adopting electric component from international class with steady quality
Sealed safety enclose to reduce noise levels, improve extraction and operator safety

Model No.			MTRMM623		MTRMM523	MTRMM423
Working Width (mm)		Min.	20
		Max. （max. cutting circle of 130mm）	230
Working Thickness (mm)		Min.	8
		Max. （max. cutting circle of 160mm）	160
Number of spindles			6		5	4
Spindle Speed(r/min)			6000
Cutting circles(max~min)(mm)		First Bottom Spindle	Ø108 ~ Ø145
		Right side Spindle	Ø108 ~ Ø200
		Left side Spindle	Ø108 ~ Ø200
		First Top Spindle	Ø108 ~ Ø200
		Second Top Spindle	Ø108 ~ Ø200		~~~~~	~~~~~
		Second Bottom Spindle	Ø108 ~ Ø200				Ø108 ~ Ø200	~~~~~
Rotation angle for universal spindle(mm)			Ø40
Motor powers (Standard)		First Bottom Spindle	5.5 kW/7.5HP		5.5 kW/7.5HP	5.5 kW/7.5HP
		Right side Spindle	5.5 kW/7.5HP		5.5 kW/7.5HP	5.5 kW/7.5HP
		Left side Spindle	5.5 kW/7.5HP		5.5 kW/7.5HP	5.5 kW/7.5HP
		First Top Spindle	7.5kW/10 HP		7.5kW/10 HP	7.5kW/10 HP
		Second Top Spindle	5.5 kW/7.5HP		~~~~~	~~~~~
		Second Bottom Spindle	7.5kW/10 HP		7.5kW/10 HP	~~~~~
		Feed	4kW/5.5HP		3kW/4HP	3kW/4HP
		Feed beam rise & fall	1.1kW/1.5HP		1.1kW/1.5HP	1.1kW/1.5HP
Total motor power(KW)			42.1kW/57HP		35.6kW/48HP	28.1kW/38HP
Feed speed (m/min)			6~30(Stepless adjustable)			6 ~24(stepless adjustable)
Feeding roller diameter(OD/1D) (mm)			Ø140/ Ø35
Feeding roller width(mm)			2×50
Feeding roller width opposite left spindle(mm)			2×20+1×16
Outfeed roller diameter (OD/ID)(mm)			Ø140/ Ø35
Outfeed roller width(mm)			2×50
Infeed driven bed rollers diameter(mm)			Ø96
Infeed driven bed rollers width(mm)			1×30+1×50
Driven bed roller diameter between two top spindles. (mm)			Ø96
Driven bed roller width between two top spindles (mm)			253
Outfeed bed roller diameter (mm)			Ø96
Outfeed bed roller width(mm)			253
Max. air pressure on the infeed rollers(Par. )			6
Infeed table and fence adjustment(mm)			10
Axial adjustment to vertical spindles(mm)			30
Axial adjustment to horizontal spindles ( except first bottom spindle ）(mm)			20
Infeed table length (mm)			2350	2000			2000
Dust outlet diameter(mm)			Ø150
Overall machine dimensions (L×W×H)(mm)			4730×1890×1700		3760×1730×1750	3560×1660×1700
Weight (tons approx)(T)			4.6				3.8	3.3
Specification			RMM723U			RMM623U	RMM523U
Working Width (mm)		Min.	20
		Max.（max. cutting circle of 130mm ）	230
Working Thickness(mm)	Min.		8
	Max. （max. cutting circle of 160mm ）		160
Number of spindles			6+1			5+1	4+1
Spindle Speed(r/min)			6000
Cutting circles(max~min)(mm)		First Bottom Spindle	Ø108 ~ Ø145
		Right side Spindle	Ø108 ~ Ø200
		Left side Spindle	Ø108 ~ Ø200
		First Top Spindle	Ø108 ~ Ø200
		Second Top Spindle	Ø108 ~ Ø200			~~~~~	~~~~~
		Second Bottom Spindle	Ø108 ~ Ø200			Ø108 ~ Ø200	~~~~~
		Universal spindle	Ø108 ~Ø180
Max. OD for installing saw（mm）			Ø350 (Rotation speed up to 3500r/min.)
Max. Length for installing cutter block （mm）			240
Spindle diameter (mm)			Ø40
Rotation angle for universal spindle			360°
Motor powers (Standard)		First Bottom Spindle	5.5 kW/7.5HP			5.5 kW/7.5HP	5.5 kW/7.5HP
		Right side Spindle	5.5 kW/7.5HP			5.5 kW/7.5HP	5.5 kW/7.5HP
		Left side Spindle	5.5 kW/7.5HP			5.5 kW/7.5HP	5.5 kW/7.5HP
		First Top Spindle	7.5kW/10 HP			7.5kW/10 HP	7.5kW/10 HP
		Second Top Spindle	5.5 kW/7.5HP			~~~~~	~~~~~
		Second Bottom Spindle	7.5kW/10 HP			7.5kW/10 HP	~~~~~
		Universal spindle	7.5kW/10HP			7.5kW/10HP	7.5kW/10HP
		Universal spindle rise & fall	0.18kW/0.25HP			0.18kW/0.25HP	0.18kW/0.25HP
		Feed	4kW/5.5HP			3kW/4HP	3kW/4HP
		Feed beam rise & fall	1.1kW/1.5HP			1.1kW/1.5HP	1.1kW/1.5HP
Total motor power(KW)			49.78kW/67.25HP			43.28kW/58.25HP	35.78kW/48.25HP
Feed speed (m/min)			6~30( 变频调速)
Feeding roller diameter(OD/1D)(mm)			Ø140/ Ø35
Feeding roller width(mm)			2×50
Feeding roller width opposite left spindle (mm)			2×20+1×16
Outfeed roller diameter (OD/ID)(mm)			Ø140/ Ø35
Outfeed roller width(mm)			2×50
Infeed driven bed rollers diameter(mm)			Ø96
Infeed driven bed rollers width(mm)			1×30+1×50
Driven bed roller diameter between two top spindles. (mm)			Ø96
Driven bed roller width between two top spindles (mm)			253
Outfeed bed roller diameter(mm)			Ø96
Outfeed bed roller width(mm)			253
Max. air pressure on the infeed rollers (Par. )			6
Infeed table and fence adjustment(mm)			10
Axial adjustment to vertical spindles(mm)			30
Axial adjustment to horizontal spindles ( except first bottom spindle )(mm)			20
Infeed table length (mm)			2350		2000				2000
Dust outlet diameter(mm)			Ø150
Overall machine dimensions (L×W×H) (mm)			5670×1890×1750	4730×1890×1750				3760×1730×1750
Weight (tonsapprox)			5.4	4.6				3.8
