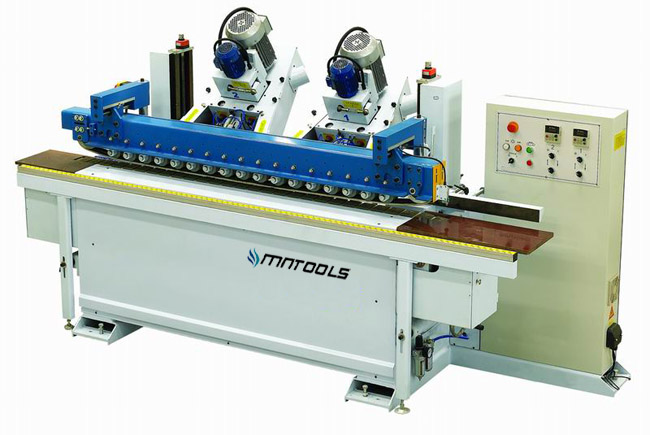

Edge sander
Model No.: MTHM-S2
Min. working width: 65mm
Min. working length: 300mm( roller type), 100mm( belt type)
Max. working thickness: 80mm
Feeding speed: 4.5~22m/ min
Feeding motor: 1pc, 380v/ 50Hz, 0.75kw, 1390rpm
Tilting motor: 1pc, 380v/ 50Hz, 0.12kw, 1400rpm
Sanding belt unit motor: 1pc, 380v/ 50Hz, 2.2kw, 1410rpm
Sanding belt size: 2060x80mm
Max. sanding width: 60mm
Sanding belt linear velocity: 8~13.5m/ s (30Hz~50Hz)
Sanding unit tilting range: -45° ~ +90°
Sanding belt pneumatic pressure: 0.2~0.3Mpa
Sanding pad pneumatic pressure: 0.2~0.5Mpa
Total power: 5.39Kw
Working voltage: 380v/ 50Hz
Dimension: 3100x1300x1500mm
N.W: 1500kgs


- Suitable for linear and profile edge work piece;
- Tiltable sanding head unit from -45° ~ +90°;
- Oscilating device and feeding compensation device to keep the surface smooth;
- Frequency inverter to control the speed of sanding belt;
- Feeding pressure rollers with spring loaded, reliable and protecting work piece optional press unit: roller feeding and - belt feeding;
- Chain track feeding, stepless speed, column guide rail, powerful and stable feeding;
- PLC control sanding pad, easy to adjust and security protection.
