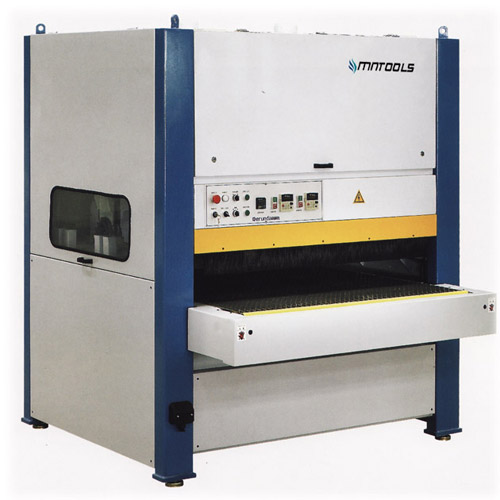

Profile Sander
Model No.: MTSB-1000-3
Min. working width: 1000mm
Min. working length: 450mm
Max. working thickness: 20~150mm
Feeding motor: 1.1kw
Lift table motor: 0.75kw
Sanding motor: 2x3kw
Sanding head lift motor: 2x0.12kw
Oscillating motor: 0.18kw
Feeding speed: 6~24m/ min
Sanding head rotary speed: 600-1500rpm
Sanding head: φ280x1240mm
Feeding belt width: 1300mm
Working voltage: 380v/ 50Hz
Dimension: 2260x1860x2100mm
N.W: 1900kgs

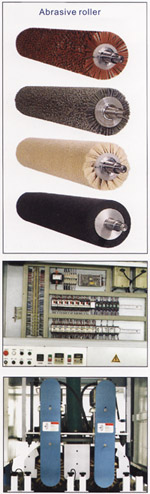

- Oscillating sanding head, can be equipped with sanding belt roller, fibre brush, cloth brush roller and etc;
- Auto and manual height controll of seperate brush roller, protect the end brushing effect;
- Individual frequency inverter motor control, easy operating.
