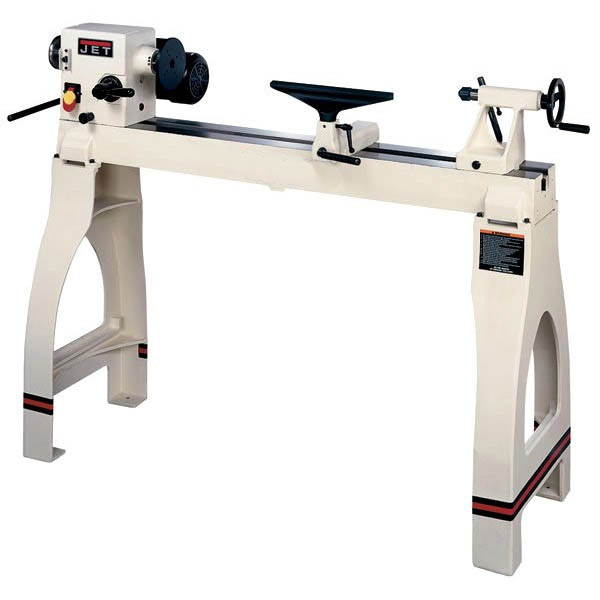

Model No. |
MTMC1100A |
| Motor |
550/ 750w |
| Number of speed |
Variable |
| Spindle speed |
500-2000rpm |
| Swing over bed |
14" |
| Distance between centers |
43" |
| Drive spindle |
1" 8RH thread or other |
| Head and tailstock taper |
#2 Morse or other |
| Face plate |
6" |
| Tool rest |
12" |
| N.W/ G.W |
83/ 88kgs (body)
45/ 48kgs (stand) |
| Packing size |
1630X360X430mm (body)
810x380x250mm (stand) |
| Loading Qty/ 20' |
80pcs |
Main Characters:
-Easy speed change;
-Solid headstock and lathe bed construction;
-Easily turn headstock and lock at 0, 60, 90, 120 and 180degree;
-14" cast iron offset tool rest
-6" face plate, spur and ball bearing live center included;
-Cast iron included;
-Powerful totally enclosed fan cooled motor;
-Heavy duty tool rest support;
-300mm cast iron tool height adjustable tool rest with bowl turning extension. |
