Model No. |

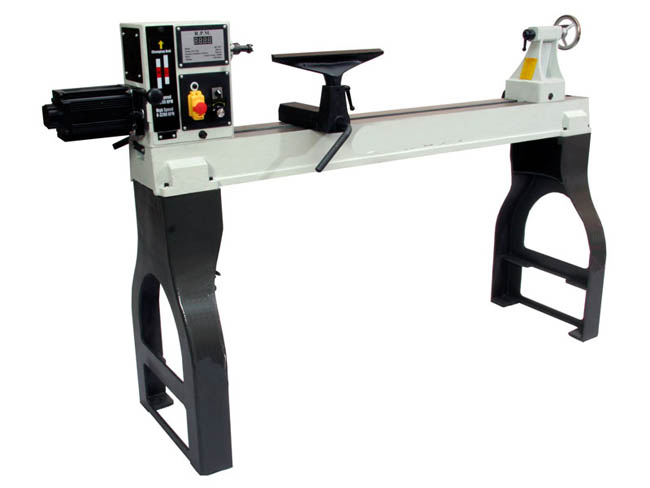

MTMC1200 |
| Motor |
1500w |
| Number of speed |
Variable |
| Spindle speed |
0-1200rpm (low speed)
0-3200rpm (high speed) |
| Swing over bed |
18" (460mm) |
| Distance between centers |
47" (1200mm) |
| Drive spindle |
M33x3.5 |
| Head and tailstock taper |
#2 Morse |
| Face plate |
6" |
| Tool rest |
14" |
| N.W/ G.W |
186/ 265kgs |
| Packing size |
1720x550x570mm |
| Loading Qty/ 20' |
75pcs |
Main Characters:
-Heavy cast iron legs provide stability at minimum vibrations;
-Adjustable feet guarantee safe stand:
-Robust cast iron pivoting headstock, adjustable on machine bed facilitates turning heavy and sturdy workpeices;
-Infinitely variable spindle speeds of 130-4000rpm via brush-less DC motor in two belt steps for high torque when turning large diameters;
-Digital speed display on pivoting headstock for quick reading of speed;
-Quick belt change construction headstock, don't need to take the spindle out when changing the belt;
-Simple and quick belt tension by motor rocker;
-The polished machined bed surfaces guarantee exteme prevision and easy adjustment of tool rest and tailstock. |
